Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size

Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size

  • Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size
  • Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size
  • Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size
  • Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size
  • Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size
  • Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size
Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size
รายละเอียดสินค้า:
สถานที่กำเนิด: กวางตุ้งจีน
ชื่อแบรนด์: MAUFUNG
การชำระเงิน:
จำนวนสั่งซื้อขั้นต่ำ: 1
ราคา: $8,000-9,000
ติดต่อ
รายละเอียดสินค้า
พลัง: 1.5kw แรงดันไฟฟ้า: 220V/50Hz
มิติ: 960*870*1390มม น้ำหนัก: 220 กิโลกรัม
การตัดความหนา: 100 มม. ความเร็วในการทำงาน: 23 ครั้ง/นาที
ขนาดกระดาษขั้นต่ำ: 105*50มม ขนาดกระดาษสูงสุด: 490*450 มม.
ขนาดโต๊ะทำงาน: 860*380มม. ความดันอากาศ: 6-8Bar
แม่พิมพ์มุมมน: 1/8 '', 3/16 '', 1/4 '', 5/16 '', 3/8 '', 7/16 '', 1 เกรดอัตโนมัติ: อัตโนมัติ
ขนาดของเครื่องจักร: 960*870*1390มม น้ำหนักสุทธิ: 220 กิโลกรัม
โมเดลหมายเลข: MF-DCM470
เน้น:

100mm Cutting Thickness Round Corner Cutting Machine

,

23 times/min Working Speed Book Cutting Machine

,

490*450mm Max Paper Size Notebook Cutting Machine

Pneumatic Double Head Angle Cutting Machine Book Round Corner Cutting Machine Notebook Cutting Machine
Product Specifications
Model No MF-DCM470
Power Supply 220V /50HZ
Max Paper size 490*450mm
Min Paper size 105*50mm
Max cutting thickness 100mm
Round corner mold 1/8'',3/16'',1/4'',5/16'',3/8'',7/16'', 1/2'',9/16'',5/8'',3/4'',7/8'', 1'
Working Table size 860*380mm
Air pressure 6-8bar
Machine Dimensions (L*W*H) 960*870*1390mm
Working Speed 23 times/min
Weight 220kg

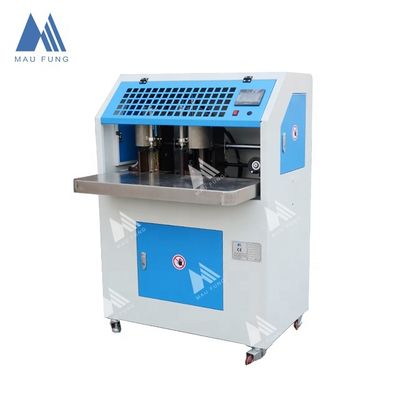

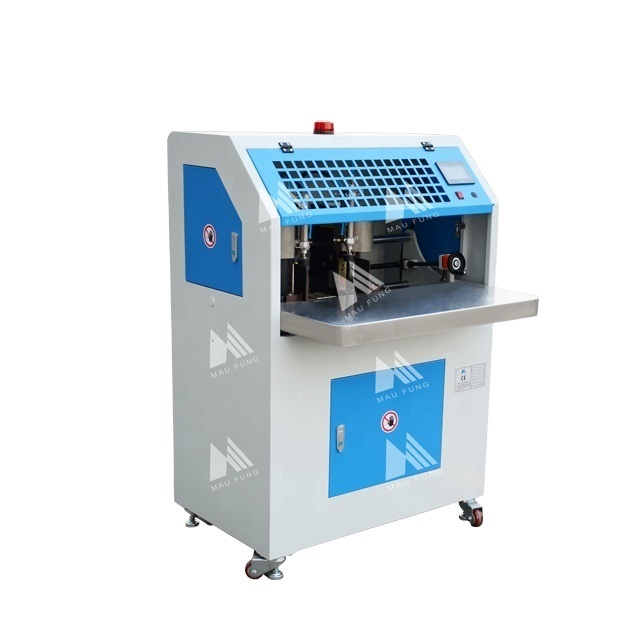

Pneumatic double head angle cutting machine overview Pneumatic double head angle cutting machine side view
Pneumatic double head with max cutting 100mm thickness.
Touch screen control panel of cutting machine Close-up of touch screen operation
Touch screen for convenient operation.
Applications
MF-DCM470 Hydraulic Double-head Angle Cutting Machine applies to books, playing cards, invitations, trademarks, business cards and other printing and cutting round, triangle shape. This machine uses hydraulic system. It can cut two sides of angles one time with simple operation and high efficiency.
Machine cutting various materials Machine in operation cutting paper Finished products after cutting
Certifications
Machine certification documents
Company Information
We Dongguan Maufung Machinery Co., Ltd is a leading manufacturer in the hard cover books binding machines and Rigid Box packaging machines. Our company mainly produces Photo Book Lay Flat Machine, Book Block Head Band Machine, Semi Auto Case Maker, Hard Cover Book Case In Machine, Hard Cover Book Pressing & Creasing Machine, Book Block Rounding Machine, fully automatic punching machine, hydraulic impacting spine machine, wire O binding machines, rigid box forming machines, etc. We possess our independent well-known brands MAUFUNG.

We take the quality and after-sale service as the core of our business which makes our brand good fame in the world. And we have a very professional R&D team with over 20 years experience in this line. We care about the market trends, focus on the machine quality and performance, and attach great importance to customers demand. Products sell well in China and have been exported to more than 100 countries.
Company facility overview
Exhibition Participation
We took part in South Print Exhibition each year, Print China Exhibition, China Print Exhibitiion and Shanghai All in Print Exhibition, and also 2019 Egypt Techono print, 2016 Drupa exhibition, 2015 Dubai Gulf Print & Pack etc. We will take part in 2020 Drupa Exhibition. Looking Forward to meeting you in our booth 6/D95.
Company exhibition booth
